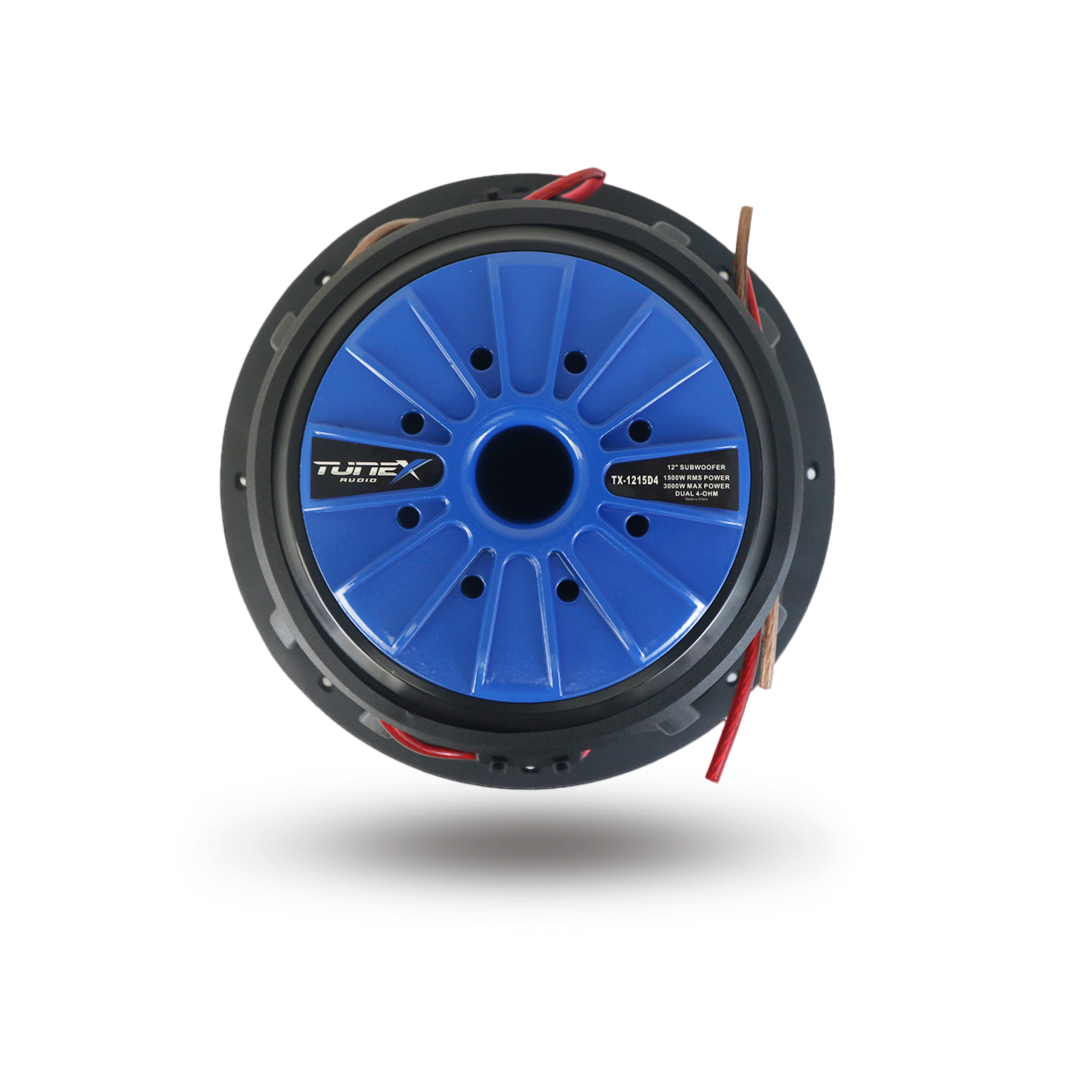

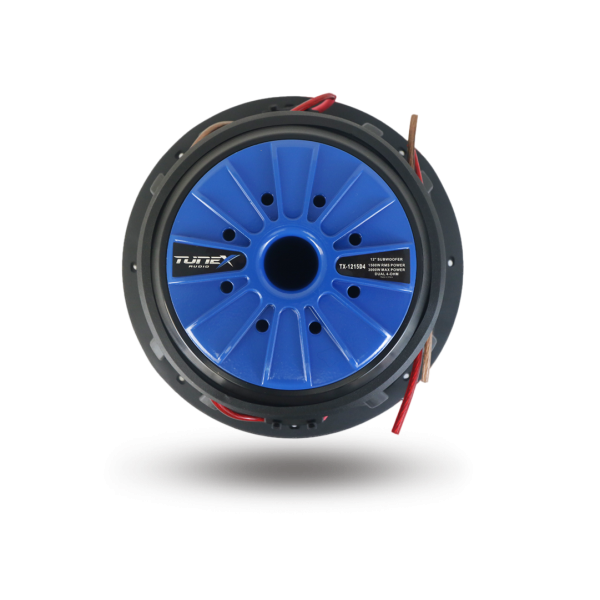

Tunex Champ 12″ 1500RMS TX-1215 D4 Subwoofer

$549.00

12″ Subwoofer DVC 4 Ohm 1500W Rms – 3 inch Round Copper Voice Coil – Blue Stitching- Blue Heatsink

In stock (can be backordered)

Free Fast Shipping

100% Kiwi Owned & Operated

18 Months Warranty

Secure Payment

SKU: TX1215 D4 Categories: 12 Inch Sub, Car Audio, Subwoofers

Description

TX-1215D4 – Connected in Parallel

Impedance (Ohm): 2
Size (Inch): 8
Power (W): 1500
Voice Coil: 3.0″ Copper
Magnet Size: 3x190x20
Magnet Weight (oz): 240
Xmax (±mm): 15.5
Xmech (mm): 44
Dcr (Ohm): 1.7
Fs (Hz): 33.479
SD (msqM): 51.071
BL (Tm): 14.179
Qms: 5.116
Qes: 0.429
Qts: 0.396
SPLo (dB): 86.6
Vas (L): 26.659
Cms (μm/N): 78.18
Mms (g): 256.29
Mmd (g): 243.017

TX-1215D4 – Connected in Series

Impedance (Ohm): 8
Size (Inch): 8
Power (W): 1500
Voice Coil: 3.0″ Copper
Magnet Size: 3x190x20
Magnet Weight (oz): 240
Xmax (±mm): 15.5
Xmech (mm): 44
Dcr (Ohm): 1.7
Fs (Hz): 33.695
SD (msqM): 51.071
BL (Tm): 14.179
Qms: 5.106
Qes: 0.39
Qts: 0.362
SPLo (dB): 86.8
Vas (L): 26.431
Cms (μm/N): 75.444
Mms (g): 279.237
Mmd (g): 265.964
